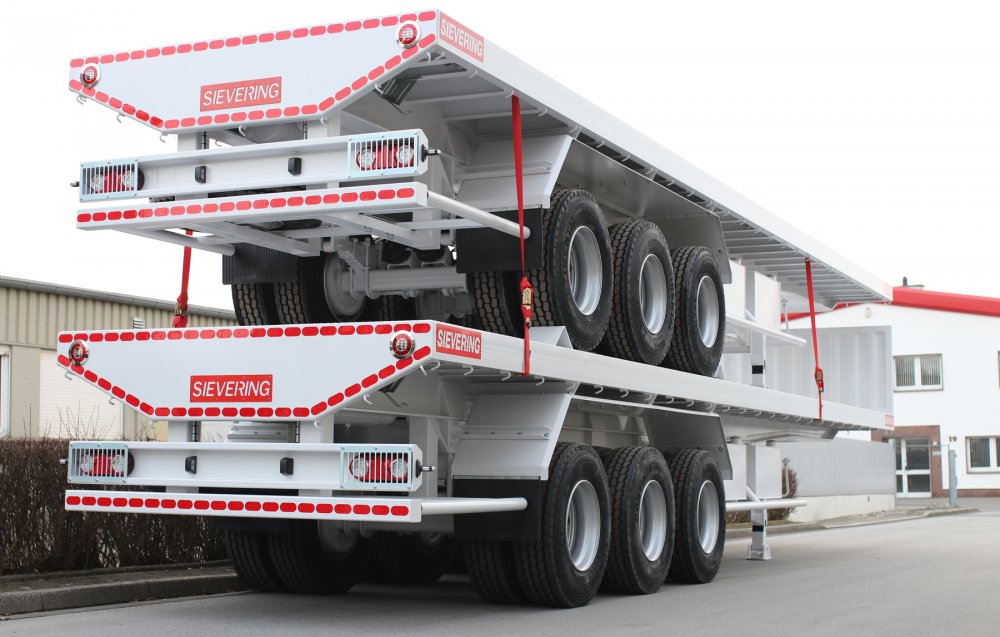

Plateau semi-trailers



All kinds of cargo

The Sievering plateau semi-trailers come with a flat loading area for transporting heavy loads over good and bad metalled roads as well as unmetalled roads. The potential applications are almost unlimited. For anything from general haulage to container transport via the integrated twistlock elements, the plateau semi-trailers can accommodate an extremely wide variety of loads.



Payload - from grain transport to general cargo

Two variants are offered: The light series, with a payload of 50 tonnes, is best used for the trans-regional transport of grain and containers. The heavy series, with a payload of 60 tonnes, is designed for the transshipment of cement and heavy goods for road and mine construction.

Basic features

  • Flexible application for a variety of transport tasks
  • Robust design for off-road application
  • Platform length 13,000 mm / width 2,520 mm
  • Storage space for two spare wheels
  • Optional 1,000 litre tank and pump
  • Worldwide delivery

Model Overview

  1. Plateau semi-trailer with 50 tonne payload
    • BPW leaf spring suspension, 3 x 14 tonne
    • BPW axles, 3 x 14 tonnes
    • Continental tyres, 12 x 315/80R22.5 (plus spare tyre)
    • Wabco dual circuit brake system with optional ABS
    • Optional 1,000 litre tank and pumping system
    • Painted to customer's specifications
  2. Plateau semi-trailer with 60 tonne payload
    • BPW leaf spring suspension, 3 x 16 tonne
    • BPW axles, 3 x 16 tonne
    • Continental tyres, 12 x 325/95R24 (plus spare tyre)
    • Wabco dual circuit brake system with optional ABS
    • Optional 1,000 litre tank and pumping system
    • Painted to customer's specifications
  3. Custom-made product
    • 30 – 60 tonne payload
    • Axle assembly with 2 to 4 axles
    • Axle loads from 12 to 20 tonnes
    • Wabco dual circuit brake system with optional ABS
    • Construction (length/width/height) to specification
    • Optional side walls
    • Painted to customer's specifications
